Products Minto No.2 to No.5 Glands Paper Lead Cable Gland
Weight
6.5kg
Dimensions
L 190mm W 155mm H 280mm
Compliance
Explosion protected to IEC 60079 Series
Materials
Manganese Bronze
IP Rating
IP66/68
Ordering Procedure
1
Select complete Gland from table 1
2
Select Grommet from table 2
Table 1
| Part Number | Cable Acceptance |
|---|---|
|
F-4087P
|
Cable O.D. Max 50 mm |
|
F-4088P
|
Cable O.D. Max 78 mm |
Table 2
| Neoprene Grommets | |||
|---|---|---|---|
| Part Number | Cable Acceptance | ||
|
3137-25
|
21.0-25.0 | ||
|
3137-28
|
24.0-28.0 | ||
|
3137-32
|
27.0-32.0 | ||
|
3137-35
|
31.0-35.0 | ||
|
3137-38
|
|
||
|
3137-41
|
37.0-41.0 | ||
|
3137-44
|
40.0-44.0 | ||
|
3137-48
|
43.0-48.0 | ||
|
3137-51
|
47.0-51.0 | ||
|
3137-54
|
50.0-54.0 | ||
|
3137-57
|
53.0-57.0 | ||
|
3054-25
|
22.0-25.0 | ||
|
3054-31
|
24.0-31.0 | ||
|
3054-35
|
30.0-35.0 | ||
|
3054-38
|
34.0-38.0 | ||
|
3054-41
|
37.0-41.0 | ||
|
3054-45
|
40.0-45.0 | ||
|
3054-47
|
44.0-47.0 | ||
|
3054-51
|
46.0-51.0 | ||
|
3054-54
|
50.0-54.0 | ||
|
3054-57
|
53.0-57.0 | ||
|
3054-60
|
56.0-60.0 | ||
|
3054-64
|
59.0-64.0 | ||
|
3054-67
|
63.0-67.0 | ||
|
3054-70
|
66.0-70.0 | ||
|
3054-73
|
69.0-73.0 | ||
|
3054-76
|
72-76 | ||

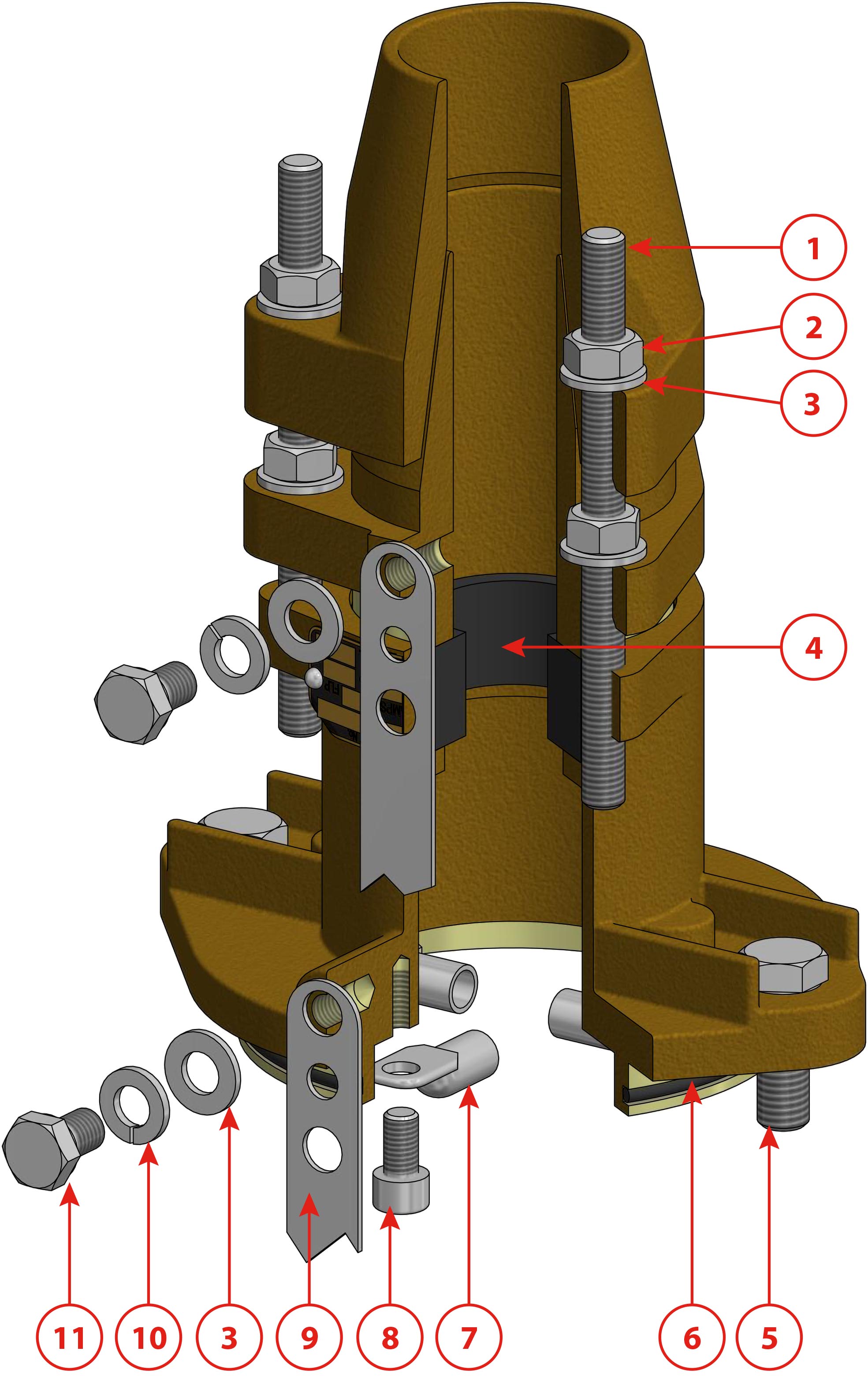

Spare Parts
| # | Part Number | Description |
|---|---|---|
| 1 |
3385
|
Stud M10 |
| 1 |
3385
|
Stud M10 |
| 2 |
AH120011
|
Nut M10 |
| 2 |
AH120011
|
Nut M10 |
| 3 |
AH120011
|
Nut M10 |
| 3 |
AH150011
|
Washer M10 |
| 4 |
|
Neoprene Grommet |
| 4 |
|
Neoprene Grommet |
| 5 |
AH113134
|
Screw M12 x 35 hex. head |
| 5 |
AH113134
|
Screw M12 x 35 hex. head |
| 6 |
AI019010
|
O-ring ID 120.24 x sect. 3.53 |
| 6 |
AI019010
|
O-ring ID 120.24 x sect. 3.53 |
| 7 |
AH017206
|
Earth Lug |
| 8 |
AH115093
|
Screw M8 x 15 skt. head |
| 8 |
AH115093
|
Screw M8 x 15 skt. head |
| 9 |
201-264-1
|
Earth Strap |
| 9 |
201-264-1
|
Earth Strap |
| 10 |
AH151011
|
Spring Washer M10 |
| 10 |
AH151011
|
Spring Washer M10 |
| 11 |
AH113111
|
Screw M10 x 16 hex. head |
| 11 |
AH113111
|
Screw M10 x 16 hex. head |
