Products Minto 150 Amp Series Back to Back Receptacle
Weight
14kg (no skid) 17kg (with skid)
Dimensions
L 450mm W 230mm H 300mm
Compliance
Explosion protected to AS/NZS1299 & IEC60079 Series
Materials
Manganese Bronze / Brass / PTFE
IP Rating
IP66/68
Ordering Procedure
1
Select complete Back to Back from Table 1
Table 1
| Part Number | Description | Colour |
|---|---|---|
|
AH164B
|
660V Back to Back Receptacle | Orange |
|
AH114B
|
1100V Back to Back Receptacle | Blue |
|
AH164BS
|
660V Back to Back Receptacle c/w skid | Orange |
|
AH114BS
|
1100V Back to Back Receptacle c/w skid | Blue |

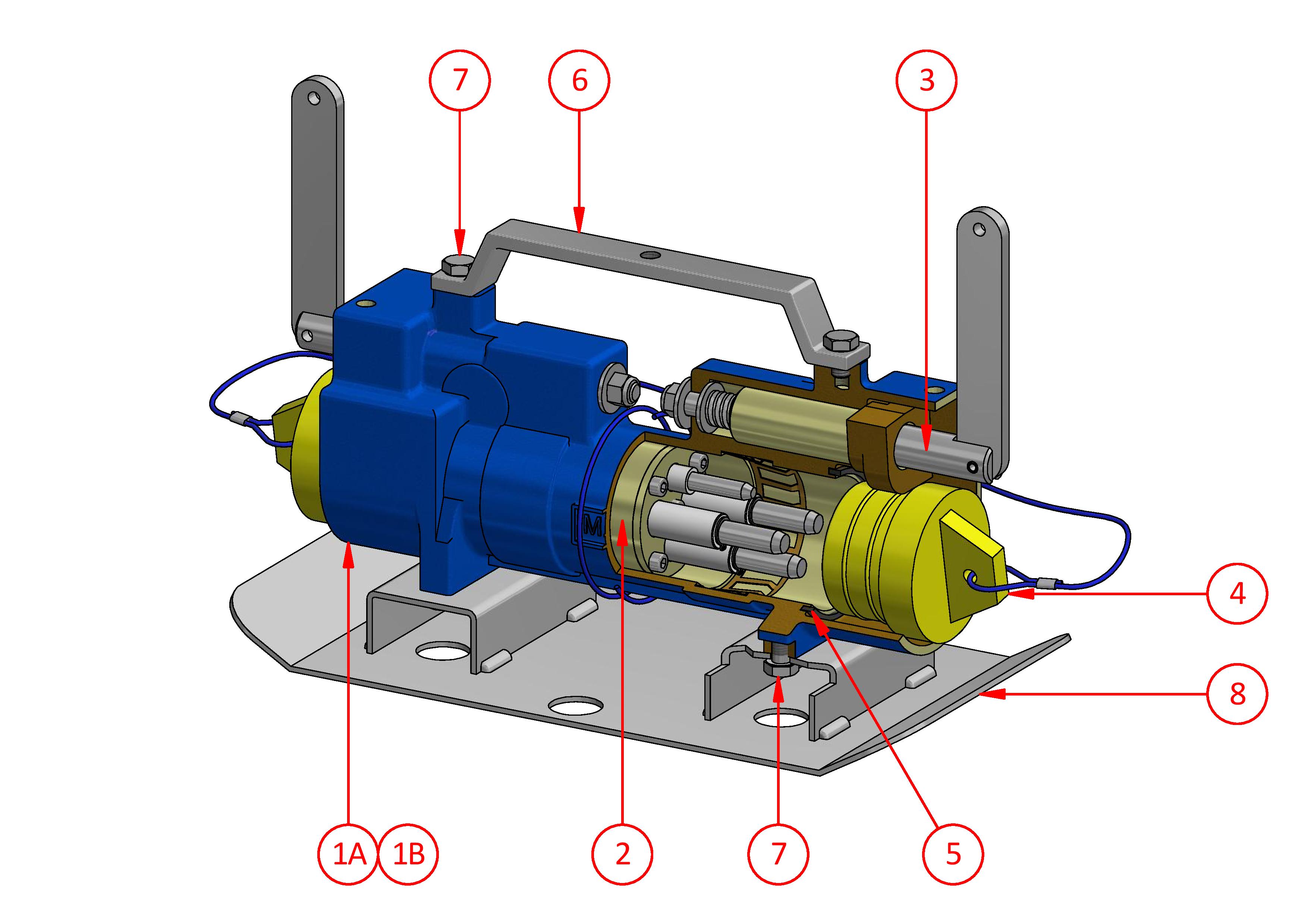

Spare Parts
| # | Part Number | Description |
|---|---|---|
| 1A |
F-4117-164
|
660V Back to Back Body c/w items 1A, 3, 5, 6 & 7 |
| 1B |
F-4117-114
|
1100V Back to Back Body c/w items 1B, 3, 5, 6 & 7 |
| 2 |
F-348-1
|
Interior c/w screws AH115135 M6 x 35 skt. head |
| 3 |
F-329
|
Jacking Screw |
| 4 |
F-310
|
Sealing Plug |
| 5 |
4401-2
|
Seal |
| 6 |
4035
|
Lifting Handle |
| 7 |
AH113111
|
Screw M10 x 16 hex. head |
| 8 |
4043S
|
Skid Plate |
